Timber Garage | SolidLox Post & Beam Room over Double Garage

SolidLox Post & Beam Room Over Double Garage Timber Garage

Timber Garage Model: SL-5953-post&beam-garage
 Timber Garage
  SolidLox Post & Beam Room Over Double Garage

Click images For Enlarged View


Available Now For £9,128.00

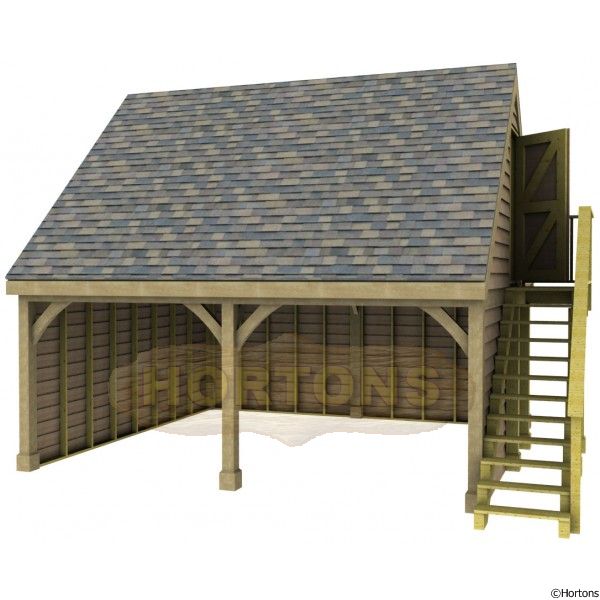

Traditional 2 Bay Post and Beam Garage with Room Over

Specifications:

  • 150mm x 150mm Timber Square Posts (finish of choice - sawn or planed at extra cost)
  • 100mm x 220mm Timber Beams(finish of choice - sawn or planed at extra cost)
  • 75mm x 175mm Timber Corner Braces(finish of choice - sawn or planed at extra cost)
  • Softwood sawn finish Cut Rafter or Truss Roof (Dependant on design)
  • 9mm OSB3 roof sarking boarding with breather membrane over
  • 25mm x 38mm softwood counter battens ready for tile and battens
  • Walls have 38mm x 89mm sawn framework
  • Walls & gable ends have sawn softwood 20mm featheredge
  • Each timber post has a height adjustable metal post base & anchor bolts supplied (for unlevel base levelling)
  • All posts, beams, braces and cladding timber is supplied untreated, ready to receive wood preservative or other treatment.
  • Softwood studwork framing & roofing timbers are all pressure treated with Protim E406 UC2
  • Side gable roof, High pitch, Ridge = 5293mm - 5343mm
  • The upstairs room has a fully boarded floor for full access via the external stairs and personal door

Optional Extras

  • Roofing materials
  • Cladding profiles
  • Garage Doors (traditional side hung, sectional up & over or roller doors)
  • Personnel Doors
  • Windows
  • Dormer roof windows
  • Staircases (internal or external - requires high roof pitch)


Additional Information

Delivery Time     4 - 6 Weeks
Min. Clearance Height     2.160m
Max. Clearance Height     2.210m
External Width     5.85m
External Depth     5.30m
Internal Width     5.55m
Internal Depth     5.00m

PID: 4800


Timber finish required
  • Sawn finish Douglas Fir (standard specification)
  • Planed finish Douglas Fir £100.00
  • Sawn Finish Green Oak £756.00
  • Planed finish Green Oak £856.00

  • Garage doors
  • 1 pair of 2.1m x 2.1m (7ft x 7ft) side hung timber garage doors £315.00
  • 2 pairs of 2.1m x 2.1m (7ft x 7ft) side hung timber garage doors £630.00
  • 1 pair of bespoke full bay width side hung timber garage doors £740.00
  • 2 pairs of bespoke full bay width side hung timber garage doors £1,480.00

  • Roof covering required
  • Plain clay tiles £1,321.00
  • Metrotile £1,549.00
  • Cedar shingles £1,902.00
  • Tapco Slates £2,555.00

  • All Prices Quoted include VAT at 20.0%
